Lunelle ES70 Torique RX TDE

Lunelle Torique

The Lunelle ES70 Torique is an individual soft contact lens for all astigmatic refractive errors.

Its wide range of parameters and it’s unique ES70 material allows an optimal adaptation to the eye and therefore highest wearing comfort and long wearing times.



The Lunelle Torique are available in 3 different designs.

All designs has a dynamic stabilisation.

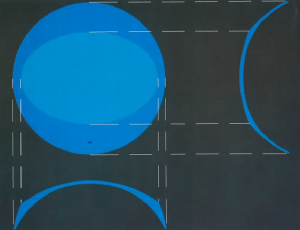

Lunelle Torique Standard

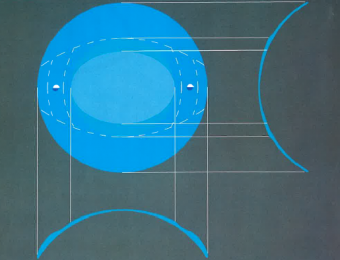

Lunelle Torique RX TDE/

Lunelle Torique RX TDI











Only small manufacturing tolerances allow a delivery programme of the smallest gradations.

The most individual adaptations are therefore possible.

The adaptation philosophy, using marked measuring lenses, enables the fitter to make comprehensive statements even before the final prescription lens is produced.





The ES70 Material

The ES70 material used for Lunelle contact lenses is composed of PMMA, which makes it robust and transparent, and PVP, which ensures a stable water content. The production of ES70 material will continuous after the take over by SwissLens. The same laboratorie will produce the row material and blank as before and exclusively availalbe for the Lunelle Products from SwissLens. The material involves the use of the most advanced techniques to obtain the stable material. The development of Essilor's polymerisation technology has proven to provide a very consistent material quality.





Tekniske data:

Sph: +30.00/-30.00

Cyl: -0.50 to -8.00 0.25 D step

Axe: 0 - 180 1 step

BOZR: 8.00 (14.3 TD) 8.30 (15.0 TD) / 9.20 (14.3 TD) 9.50 (15.0 TD) 0.30 step

TD: 14.3 & 15.0

Material: ES70

DK: 35

Watercontent: 70%

Geometry:

• Toric front optic

• Spheric back optic with tangential flattening (like Lunelle ES 70 Spherique)

• Extended parameters to the Lunelle Standard

• Stabilisation marks at 0° and 180°


Fitting guide for Lunelle ES70 Torique Standard:

Base curve calculation for the first contact lens
We recommend to chose the Diameter of the lens by adding 2.50 mm to the HVID.

Diameter 14.00 mm = flattest K + 0.80 mm
Diameter 14.50 mm = flattest K + 0.80 mm

Fitting guide for Lunelle ES70 Torique RX

Base curve calculation for the first contact lens
We recommend to chose the Diameter of the lens by adding 2.50 mm to the HVID.

Diameter 14.30 mm = flattest K + 0.80 mm
Diameter 15.00 mm = flattest K + 1.00 mm

Choice between Lunelle Torique RX TDI and TDE

Delta K < 0.50 mm = TDE
Delta K > 0.50 mm = TDI
Cyl CL > Delta K = TDE
